SD300 Series Battery Disconnect Switches

Features: * Safely rupture full load currents in the event of an emergency * Can be used in high-side or low-side applications * Large DC rating up to 500A * SAE J1455 compliant for harsh environment * Optional lock-out/tag-out (LOTO) satisfying OSHA requirements * Black or gray thermoplastic housing with a UL 94 V-0 rating * IPX8 rated	Installation dimensions:
Specifications: Continuous Rating: 300A or 400A @ 12VDC 300A @ 24VDC 200A @ 36VDC 150A @ 48VDC 115A @ 64VDC 100A @ 72VDC 75A @ 96VDC Intermittent Rating: 3000A x 15 sec. Ignition Protection: UL 94V-0 Opearting Temp.: -40 °C to 85 °C [-40 °F to 185 °F] Circuitry: SPST Protection Level: IPX8

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

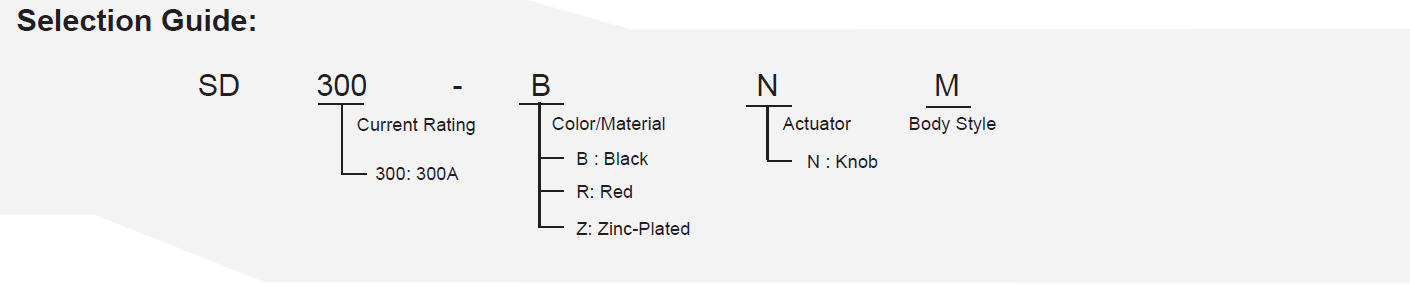

TYPE:SD300-BNR View Details	TYPE:SD300-BNS View Details	TYPE:SD300-RNM View Details
TYPE:SD300-ZNM View Details
